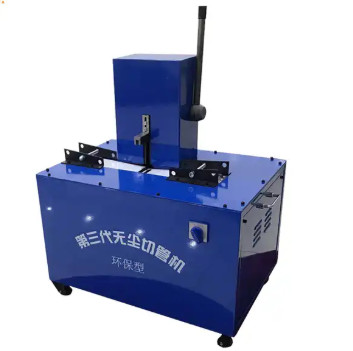

6-51mm automatic manual hydraulic tube cutting machine for rubber hose
DECRIPTION
Technical Parameters of pipe cutting machine:
1. Cutting diameter: ID6mm~38mm and ID6mm~51mm
2. Power: 4kw
3. Working voltage: 380v 50HZ
4 Max crimping outside diamater:80mm
5 Blade: 2 sets
6 Dimension: 650*410*425mm
FY-QG-51 is a hose cutting machine which also have the ability to strip hose rubber. It has big power,
so that it can cut hydraulic stainless steel braided hose up to 2 inch 4 wire.
The brief introduction to hydraulic rubber hose cutting machine
Our company is a high technology enterprise,which mainly manufactures and sells different hose crimping machine and cutting machines.By advanced technology,excellent quality,first class service,we have obtained our customers' trust
| Cutting rarge | 6-51 mm(1/4-2"imer diameter of hose) |
| Material of blade | HSS(High-speed steel) |
| Accuracy | 0.01 mm |
| Motor power | 3kW/4kW(Optional) |
| Voltage | 220V/380V/415V(Customizable) |
| Work effciency | 1500pcs/h |
| Machie dimersion | 760*510*850mm |
| Package dimersion | 860*610*950mm |
| Net weight | 90kg |
| Gross weigt | 100kg |
| Delivery time | 1set/5 days,5sets/7days,10sets/15 days |
| Guarantee | One year guarantee from date on B/L. |
Operation instruction of hose cutter:
(1) Plug in. Check whether the direction of rotation of the cutting blades is consistent with the direction of arrow. (Reversing prohibited)
(2) Adjust the positioning cock according to the diameter of the cut pipe in case there would be slant and slice problems.
(3) Put the cut pipe in place. Push the feed lever. Fulfill the cutting process.
The features of our hydraulic rubber hose cutting machine
1.Dust-free and environmentally friendly 2. Hydraulic drive makes the cutting fast and precise.
3. Simple operation, little noise and powder pollution.
4. There are no burrs on inside and outside of the slit edge.
5. It is suitable for sawing various sections of common iron, stainless steel, copper, aluminum and other metal materials, especially for the cutting of various kinds of pipes.
ADVANTAGES
1. Movable wheel to make the machine more convenient to move;
2. Human design handle, save opetator power;
3. Scale on the skiving tool, easy to adjust the skiving depth;
4. High quality copper wire aluminium motor, no heat exceed even afetr using for a long time.
TECHNICAL DATA
| Model | FY-QG-51 Hose Cutting/Skiving Machine |
| Hose Size | 1/4''-2'' |
| Motor Power | 3kw-4kw |
| Voltage | 100v-415v 50/60hz |
| Work Efficiency | 1500pcs/h |
| gross weight | 100kg |
| Length | 760mm |
| Width | 510mm |
| Height | 850mm |
| Net Weight | 90kg |
► PICTURES
► APPLICATION
FY-QG-51 is hose cutting machine which also have fucntion of hose rubber stripping. It is an essential device for hose assembly making before crimping. Cutting is to cut the hose to the needed length for hydraulic system connecting, skiving is to strip the inner or out rubber layer, so that the stainless steel braided hose can be connect well with ferrule and fittings.
